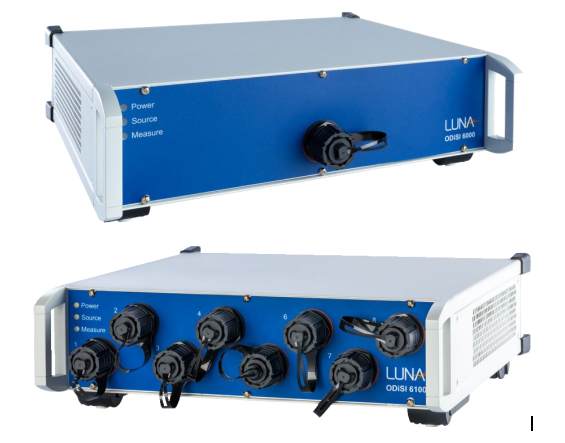

分布式光纤传感系统—ODiSI 6100系列

分布式光纤传感系统—ODiSI 6100系列

型 号:ODiSI 6100
原产地:
用 途:ODiSI 6100系列分布式光纤传感系统,具有毫米级空间分辨率,每米光 纤上具有上千测试点,高空间分辨率能够帮助绘制应变/温度云图,在 测试过程中实时显示。

ODiSI 6100系列
分布式光纤传感系统

ODiSI 6100系列是一种新颖的测试系统,基于OFDR技术,使用单模光纤作为传感器,为21世纪先进材料和复杂结构测试提供新的解决方案


ODiSI 6100系列分布式光纤传感系统,具有毫米级空间分辨率,每米光纤上具有上千测试点,高空间分辨率能够帮绘制应变/温度云图,在测试过程中实时显示。
光纤传感器柔韧性好,体积小,不需要电源激励,能够粘贴固定在结构表面,尤其是大曲率结构表面;能够嵌入在结构内部,或者直接安装在电气结构的内部。

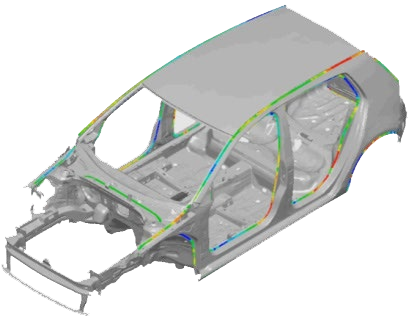

汽车白车身上布置了光纤传感器并进行了加载测试,应变数据和三维模型结合,以云图显示应变分布特性,图中可以看到明显的应力集中。

除了提供实时的应变/温度数据外,ODISI系统还是一个完整的数据采集解决方案,具有许多功能,可记录数据,可视化数据并与外部系统集成。

关键特性

多通道分布式实时应变和温度测试高亚毫米级距离分辨率
柔韧性好,质量轻,安装方便,提高测试效率
无源传感器,抗腐蚀,绝缘,能够铺设在传统传感器不能布置的地方,如:弯角、角落、嵌入到材料中
传感器寿命长,无漂移,无需重新校准,耐疲劳循环大于1亿次
应变量程大,空间分辨率高,可用于测量复杂应变场和大的应变梯度
系统内置NIST标准气室,连续自动校准,无需中断测试

IEEE 1588 PTP网络时间同步

应用领域

研究新材料或复杂结构的内/外应变特性,加速研发进程
测试温度分布,优化严酷环境下的热设计和热管理
测量二维或三维结构应变分布,验证FE模型
评估多种材料连接部位力学性能

埋入光纤传感器,制作智能结构

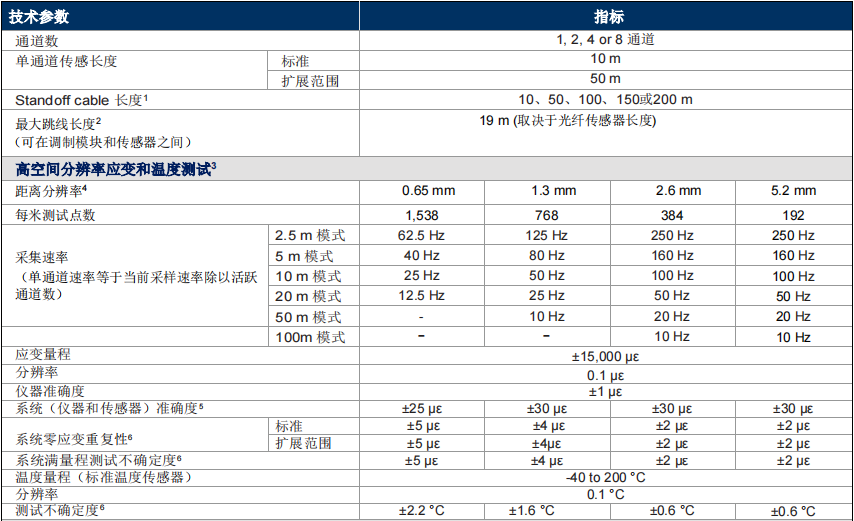

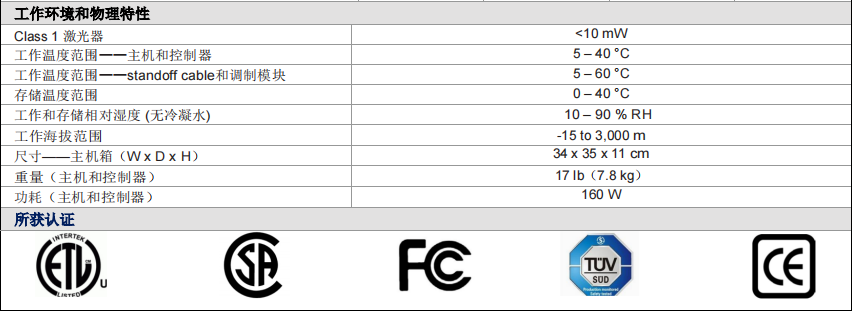

注释
1. Standoff cables connect the ODiSI mainframe to the remote modules and sensors, and are available in lengths of 10, 50 and 100 m. Cables can be combined to form standoff lengths of 150 and 200 m.
2.Patch cords can be used to connect the remote module tether to the sensor. The total length of the patch cord plus the active sensor fiber must not exceed 10 m for Standard length mode or 50 m for Extended Range mode.
3.High-definition strain and temperature mode is used with standard HDS and HDT sensors. Strain-compensated temperature mode requires HD-SC sensors.
4.Gage pitch is the distance between centerpoints of consecutive gages.
5. Accuracy reflects ODiSI measurements compared to NIST-traceable extensometer measurements. Data based on average of 150 measurements at each of seven increments of strain, from 0 to maximum strain. System accuracy includes errors from ODiSI instrument and Luna strain sensors.
6.Measurement uncertainty is equal to twice the standard deviation calculated from a set of 1000 measurements. Measurement uncertainty includes the effects of the ODISI interrogator and Luna sensors.
